The base class for all SPIN scene graph nodes. More...
#include <ReferencedNode.h>
Public Member Functions | |
| ReferencedNode (SceneManager *sceneManager, const char *initID) | |
| virtual void | registerNode (SceneManager *s) |
| virtual void | callbackUpdate (osg::NodeVisitor *nv) |
| virtual void | updateNodePath (bool updateChildren=true) |
| int | setAttachmentNode (osg::Group *n) |
| void | updateChildNodePaths () |
| void | setParent (const char *newvalue) |
| void | attachTo (const char *parentID) |
| void | detachFrom (const char *parentID) |
| bool | inGraph () |
| unsigned int | getNumParents () const |
| std::string | getParentID (int i) const |
| ReferencedNode * | getParentNode (int i) |
| std::vector< ReferencedNode * > | getChildren () |
| virtual void | setContext (const char *newvalue) |
| void | setAlpha (float alpha) |
| float | getAlpha () const |
| const char * | getContext () const |
| std::string | getContextString () const |
| virtual void | setParam (const char *paramName, const char *paramValue) |
| virtual void | setParam (const char *paramName, float paramValue) |
| void | setStateSetFromFile (const char *filename) |
| void | setStateSet (const char *s) |
| const char * | getStateSet () const |
| virtual void | updateStateSet () |
| osg::Group * | getAttachmentNode () const |
| virtual void | debug () |
| virtual std::vector< lo_message > | getState () const |
| virtual void | stateDump () |
| virtual void | stateDump (lo_address addr) |
| std::string | getID () const |
| std::string | getNodeType () const |
| t_symbol * | getNodeSymbol () |
| bool | addCronScript (bool serverSide, const std::string &label, const std::string &scriptPath, double freq, const std::string ¶ms) |
| bool | callCronScripts () |
| bool | enableCronScript (const char *label, int enable) |
| bool | removeCronScript (const char *label) |
| bool | addEventScript (bool serverSide, const std::string &label, const std::string &eventName, const std::string &scriptPath, const std::string ¶ms) |
| bool | callEventScript (const std::string &eventName, cppintrospection::ValueList &args) |
| bool | enableEventScript (const char *label, int enable) |
| bool | removeEventScript (const char *label) |
Public Attributes | |
| osg::NodePath | currentNodePath_ |
| bool | scheduleForDeletion_ |
Protected Member Functions | |
| bool | legalParent (t_symbol *newParent) |
| void | setNodeType (std::string t) |
Protected Attributes | |
| SceneManager * | sceneManager_ |
Detailed Description

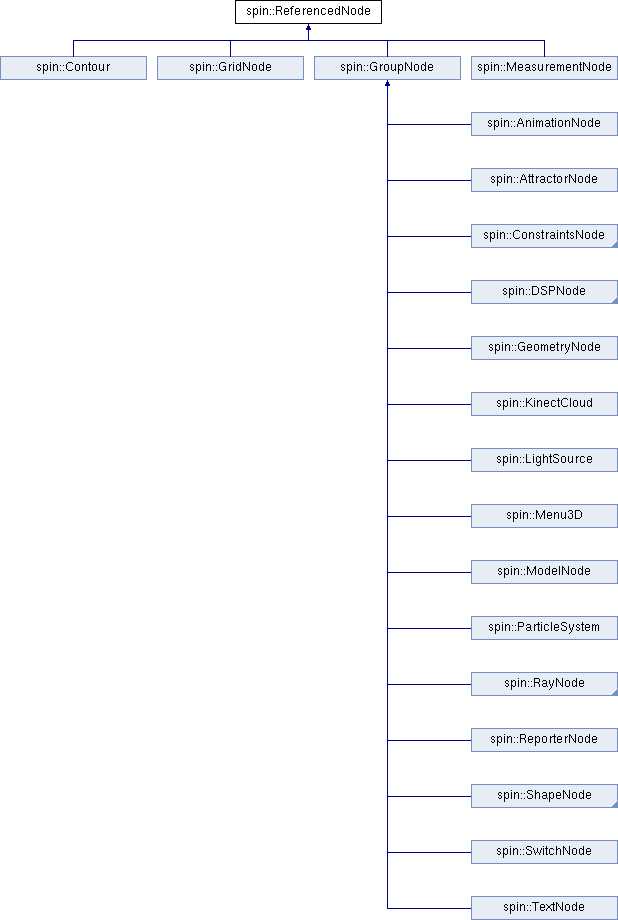

The base class for all SPIN scene graph nodes.
Any node that is to be attached to the scene graph needs to be extended from the ReferencedNode class. By doing so, the OSC networking interface is created automatically, and the wx gui is automatically populated with the nodes editable properties.
Member Function Documentation
| void spin::ReferencedNode::attachTo | ( | const char * | parentID | ) |
Attach this node to the node with parentID (if found).
| void spin::ReferencedNode::callbackUpdate | ( | osg::NodeVisitor * | nv | ) | [virtual] |
For nodes that require regular programmatic control, there is a callback that is evaluated with every refresh. This function can thus be used for animations, or any other periodic updates.
Note that changes to the scene graph structure (eg, moving/deleting nodes should NOT be done within this callback because traversals stacks will become corrupted. The technique is rather to enable a flag and then do the actual change in the SceneManager::updateGraph() method.
Reimplemented in spin::AnimationNode, spin::AttractorNode, spin::CollisionShape, spin::ConstraintsNode, spin::Contour, spin::DSPNode, spin::GeometryNode, spin::GroupNode, spin::KinectCloud, spin::Listener, spin::MeasurementNode, spin::ParticleSystem, spin::PointerNode, spin::ReporterNode, spin::SoundNode, spin::TextNode, and spin::UserNode.
| void spin::ReferencedNode::debug | ( | ) | [virtual] |
Debug print (to log/console)
Reimplemented in spin::CollisionShape, spin::GroupNode, and spin::ReporterNode.
| void spin::ReferencedNode::detachFrom | ( | const char * | parentID | ) |
Detaches the node from the parentID (if found). Note: you can pass "*" for the parentID and the node will be detached from ALL parents.
| osg::Group* spin::ReferencedNode::getAttachmentNode | ( | ) | const [inline] |
subclasses of ReferencedNode may contain complicated subgraphs, and any children get attached not to the node pointer itself, but to an attachmentNode. This attachmentNode essentially defines the origin of the local coordinate system of this node (according to the subgraph). This function returns a pointer to this node.
| const char* spin::ReferencedNode::getContext | ( | ) | const [inline] |
Returns the current host
| std::string spin::ReferencedNode::getID | ( | ) | const [inline] |
Return the string id for this node
| std::string spin::ReferencedNode::getParentID | ( | int | i | ) | const |
Returns the parent id (string)
| ReferencedNode * spin::ReferencedNode::getParentNode | ( | int | i | ) |
Returns the current parent as an osg::Group
| std::vector< lo_message > spin::ReferencedNode::getState | ( | ) | const [virtual] |
For each subclass of ReferencedNode, we override the getState() method to fill the vector with the correct set of methods for this particular node.
Reimplemented in spin::AnimationNode, spin::AttractorNode, spin::CollisionShape, spin::ConstraintsNode, spin::Contour, spin::DSPNode, spin::GeometryNode, spin::GridNode, spin::GroupNode, spin::KinectCloud, spin::LightSource, spin::Listener, spin::MeasurementNode, spin::Menu3D, spin::ModelNode, spin::ParticleSystem, spin::PointerNode, spin::RayNode, spin::ReporterNode, spin::ShapeNode, spin::SoundNode, spin::SoundSpace, spin::SwitchNode, spin::TextNode, and spin::UserNode.
| bool spin::ReferencedNode::inGraph | ( | ) |
The inGraph method checks if the node is actually attached to the scene graph. There are cases (eg, SwitchNode or using detachFrom) that may cause a node to be orphaned (not attached anywhere). In these cases, reporters and pointers and anything that maintains a list of targets must check if the node is inGraph().
| bool spin::ReferencedNode::legalParent | ( | t_symbol * | newParent | ) | [protected] |
TO BE DEPRECATED? The idea is that one type of node can only be attached to certain types of other nodes, but that has not been implemented. Currently, the only illegal parents include the node itself, or any children.
| void spin::ReferencedNode::setContext | ( | const char * | newvalue | ) | [virtual] |
A node can 'belong' to a certain host machine, allowing it to be rendered or behave differently than on other machines.
NOTE: the "NULL" string means that it belongs to no specific context.
NOTE: a scene operating in SERVER_MODE will always create the node, so this feature is only really relevant for clients applications.
Reimplemented in spin::ModelNode, spin::ShapeNode, and spin::TextNode.
| void spin::ReferencedNode::setParent | ( | const char * | newvalue | ) |
This method schedules a change in parent for this node. The setParent() does not immediately change the scenegraph, since it can be called at any time, even while in a traversal. The graph is updated later using the attach() method, which is called by SceneManager->updateGraph() when there is a legal time to re-order the scenegraph.
Internally, this method just sets the newParent property.
| void spin::ReferencedNode::stateDump | ( | lo_address | addr | ) | [virtual] |
Request to send the node state to one address
| void spin::ReferencedNode::stateDump | ( | ) | [virtual] |
Request to broadcast the node state via SceneManager.
Reimplemented in spin::GroupNode.
| void spin::ReferencedNode::updateChildNodePaths | ( | ) |
An internal method that keeps track of the nodepath (for efficient computation of global position, etc.
| void spin::ReferencedNode::updateNodePath | ( | bool | updateChildren = true | ) | [virtual] |
IMPORTANT: subclasses of ReferencedNode are allowed to contain complicated subgraphs, and can also change their attachmentNode so that children are attached anywhere in that subgraph. If that is the case, the updateNodePath() function MUST be overridden, and extra nodes must be manually pushed onto currentNodePath_.
Reimplemented in spin::GroupNode, spin::ModelNode, and spin::UserNode.
| void spin::ReferencedNode::updateStateSet | ( | ) | [virtual] |
In derived classes, you can handle how a stateset gets applied to a node (eg, which part of the subgraph it is attached by overriding the updateStateSet method.
Reimplemented in spin::GeometryNode, spin::GroupNode, spin::ModelNode, and spin::ShapeNode.
The documentation for this class was generated from the following files:
- include/ReferencedNode.h
- src/spin/ReferencedNode.cpp
