A basic node to manage translation/orientation/scale of a subgraph. Allows for grouping of nodes. More...

#include <GroupNode.h>

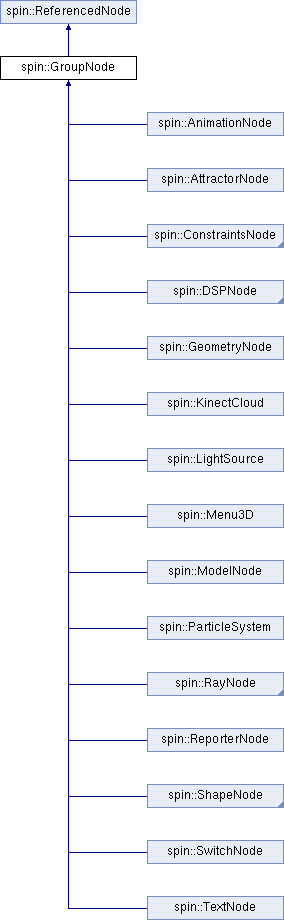

Inheritance diagram for spin::GroupNode:

Public Types
enum	InteractionMode { STATIC, PASSTHRU, SELECT, DRAG, THROW, DRAW }
enum	globalsReportMode { NONE, GLOBAL_6DOF, GLOBAL_ALL }
enum	velocityMode { TRANSLATE, MOVE }
enum	ComputationMode { SERVER_SIDE, CLIENT_SIDE }
enum	OrientationMode { NORMAL, POINT_TO_TARGET, POINT_TO_TARGET_CENTROID, POINT_TO_ORIGIN }
Public Member Functions
	GroupNode (SceneManager sceneManager, const char initID)
virtual void	callbackUpdate (osg::NodeVisitor *nv)
virtual void	updateNodePath (bool updateChildren=true)
void	mouseEvent (int event, int keyMask, int buttonMask, float x, float y)
void	event (int event, const char *userString, float eData1, float eData2, float x, float y, float z)
void	setLock (const char *userString, int lock)
virtual void	debug ()
void	setStateSetFromFile (const char *filename)
void	setStateSet (const char *s)
t_symbol *	getStateSetSymbol () const
virtual void	updateStateSet ()
void	setReportMode (globalsReportMode mode)
void	setInteractionMode (InteractionMode mode)
void	setComputationMode (ComputationMode mode)
int	getComputationMode () const
void	setClipping (float x, float y, float z)
virtual void	setTranslation (float x, float y, float z)
void	setOrientationMode (OrientationMode m)
int	getOrientationMode () const
void	setOrientationTarget (const char *target)
char *	getOrientationTarget () const
virtual void	setOrientation (float pitch, float roll, float yaw)
virtual void	setOrientationQuat (float x, float y, float z, float w)
virtual void	setScale (float x, float y, float z)
virtual void	setVelocity (float dx, float dy, float dz)
virtual void	setVelocityMode (velocityMode mode)
virtual void	setSpin (float dp, float dr, float dy)
virtual void	setDamping (float d)
virtual void	translate (float x, float y, float z)
virtual void	move (float x, float y, float z)
virtual void	rotate (float dPitch, float dRoll, float dYaw)
virtual void	addRotation (float dPitch, float dRoll, float dYaw)
virtual void	translateTo (float x, float y, float z, float time, const char *motion="Linear")
virtual void	setManipulator (const char *manipulatorType)
const char *	getManipulator () const
virtual void	setManipulatorMatrix (float a00, float a01, float a02, float a03, float a10, float a11, float a12, float a13, float a20, float a21, float a22, float a23, float a30, float a31, float a32, float a33)
void	setBroadcastLock (bool lock)
int	getReportMode () const
int	getInteractionMode () const
osg::Vec3	getClipping () const
osg::Vec3	getOrientation () const
osg::Vec3	getTranslation () const
osg::Quat	getOrientationQuat () const
osg::Vec3	getScale () const
osg::Vec3	getVelocity () const
int	getVelocityMode () const
float	getDamping () const
osg::Matrix	getGlobalMatrix ()
osg::Vec3	getCenter () const
bool	dumpGlobals (bool forced)
virtual std::vector< lo_message >	getState () const
virtual void	stateDump ()
osg::MatrixTransform *	getTransform ()
void	updateDraggerMatrix ()
Protected Member Functions
void	updateQuat ()
void	updateMatrix ()
void	drawManipulator ()
void	applyOrientationMode ()
Protected Attributes
osg::ref_ptr< UserNode >	owner_
t_symbol *	stateset_
osg::ref_ptr < osg::MatrixTransform >	mainTransform_
osg::ref_ptr < osgManipulator::Dragger >	dragger_
osg::ref_ptr < osgAnimation::Motion >	motion_
osg::Vec3	motionStart_
osg::Vec3	motionEnd_
InteractionMode	interactionMode_
std::vector< osg::Vec4 >	trajectory_
int	drawMod_
osg::ref_ptr< osg::ClipNode >	clipNode_
osg::Vec3	clipping_
globalsReportMode	reportMode_
osg::Matrix	globalMatrix_
osg::Vec3	_globalScale
float	globalRadius_
ComputationMode	computationMode_
enum OrientationMode	orientationMode_
t_symbol *	orientationTarget_
osg::Vec3	orientation_
osg::Vec3	translation_
osg::Vec3	scale_
osg::Quat	quat_
osg::Vec3	velocity_
velocityMode	velocityMode_
osg::Vec3	spin_
float	damping_
std::string	manipulatorType_
bool	manipulatorUpdateFlag_
bool	manipulatorShadowCopy_
bool	broadcastLock_

Detailed Description

A basic node to manage translation/orientation/scale of a subgraph. Allows for grouping of nodes.

Most nodes in the scene do not have a method to offset their position in the scene. This node provides a mechanism to group and offset nodes.

Member Enumeration Documentation

enum spin::GroupNode::InteractionMode

Enumerator:

STATIC	Mouse clicks and PointerNode have no effect on this node.
PASSTHRU	This passes the interaction event to the parent node, which is useful when we need a node with geometry to be selected, but want to move the parent group instead. NOTE: ONLY IMPLEMENTED FOR PointerNode; NOT DONE YET FOR MOUSE!
SELECT	This node responds to selection events (eg, can display manipulator handles when selected).
DRAG	This node responds to grag events, either invoked by mouse drags in ViewerManipulator or PointerNode.
THROW	The same as DRAG mode, but a direction vector is accumulated over the last few drags and a velocity is assigned to the node when released.
DRAW	Provides access to the x,y,z intersection points as the user draws over the surface of a node

Constructor & Destructor Documentation

spin::GroupNode::GroupNode	(	SceneManager *	sceneManager,
		const char *	initID
	)

The constructor takes a string id that will be converted to a t_symbol, which contains a pointer to this object. Thus functions will be able to acquire the pointer using gensym(), which uses a hash table lookup.

Parameters:

initID will be converted into a t_symbol

Member Function Documentation

void spin::GroupNode::addRotation	(	float	dPitch,
		float	dRoll,
		float	dYaw
	)		`[virtual]`

The addRotation command adds a (relative) rotation to the node's current orientation.

void spin::GroupNode::callbackUpdate ( osg::NodeVisitor * nv ) [virtual]

For nodes that require regular programmatic control, there is a callback that is evaluated with every refresh. This function can thus be used for animations, or any other periodic updates.

Note that changes to the scene graph structure (eg, moving/deleting nodes should NOT be done within this callback because traversals stacks will become corrupted. The technique is rather to enable a flag and then do the actual change in the SceneManager::updateGraph() method.

Reimplemented from spin::ReferencedNode.

Reimplemented in spin::AnimationNode, spin::AttractorNode, spin::CollisionShape, spin::ConstraintsNode, spin::DSPNode, spin::GeometryNode, spin::KinectCloud, spin::Listener, spin::ParticleSystem, spin::PointerNode, spin::ReporterNode, spin::SoundNode, spin::TextNode, and spin::UserNode.

void spin::GroupNode::debug ( ) [virtual]

Print debug information about the node to standard out (when running in console mode). It may be possible to redirect this to a text box for GUI logs.

Reimplemented from spin::ReferencedNode.

Reimplemented in spin::CollisionShape, and spin::ReporterNode.

bool spin::GroupNode::dumpGlobals ( bool forced )

The dumpGlobals method results in a broadcast of this node's translation and orientation. It is called by callbackUpdate() every frame, however the 'forced' flag will be set to false, so it will only send a message if the node's matrix has changed. If the 'forced' flag is set to true, it will definitely result in a message broadcast. This should only be used when necessary (eg, when a stateDump is requested).

Note: the return value is only to fool wx so that it doesn't consider this as an editable property.

std::vector< lo_message > spin::GroupNode::getState ( ) const [virtual]

For each subclass of ReferencedNode, we override the getState() method to fill the vector with the correct set of methods for this particular node

Reimplemented from spin::ReferencedNode.

Reimplemented in spin::AnimationNode, spin::AttractorNode, spin::CollisionShape, spin::ConstraintsNode, spin::DSPNode, spin::GeometryNode, spin::KinectCloud, spin::LightSource, spin::Listener, spin::Menu3D, spin::ModelNode, spin::ParticleSystem, spin::PointerNode, spin::RayNode, spin::ReporterNode, spin::ShapeNode, spin::SoundNode, spin::SoundSpace, spin::SwitchNode, spin::TextNode, and spin::UserNode.

void spin::GroupNode::move	(	float	x,
		float	y,
		float	z
	)		`[virtual]`

The move command adds a relative translation with respect to the node's current orientation. That is, the node will translate along it's direction vector by the supplied number of units.

Reimplemented in spin::ConstraintsNode.

void spin::GroupNode::rotate	(	float	dPitch,
		float	dRoll,
		float	dYaw
	)		`[virtual]`

The rotate command adds to the (absolute) orientation of the node

void spin::GroupNode::setClipping	(	float	x,
		float	y,
		float	z
	)

Set a clipping rectangle for the model so that geometry outside of the region (+-x, +-y, +-z) will not be shown (or used in interactive events)

void spin::GroupNode::setDamping ( float d ) [virtual]

A Damping value (negative acceleration) that gets applied to velocity and spin over time. Units are in -m/sec2 or -deg/sec2, meaning that:

zero damping will not change velocity/spin values
any positive value will decrease the speeds

void spin::GroupNode::setOrientation	(	float	pitch,
		float	roll,
		float	yaw
	)		`[virtual]`

The local orientation offset for this node with respect to it's parent

Reimplemented in spin::AnimationNode, spin::CollisionShape, and spin::SoundNode.

void spin::GroupNode::setOrientationMode ( OrientationMode m )

Set the OrientationMode of the node, which will be applied after every transformation.

void spin::GroupNode::setOrientationQuat	(	float	x,
		float	y,
		float	z,
		float	w
	)		`[virtual]`

Set the orientation offset as a quaternion

Reimplemented in spin::CollisionShape, and spin::SoundNode.

void spin::GroupNode::setScale	(	float	x,
		float	y,
		float	z
	)		`[virtual]`

A grouped scale operation

Reimplemented in spin::AnimationNode, and spin::CollisionShape.

void spin::GroupNode::setSpin	(	float	dp,
		float	dr,
		float	dy
	)		`[virtual]`

A rotational velocity (deg/sec), computed in callbackUpdate().

void spin::GroupNode::setStateSet ( const char * s )

Assign an existing stateset to this node

Reimplemented from spin::ReferencedNode.

void spin::GroupNode::setStateSetFromFile ( const char * filename )

setStateSetFromFile guesses the type of stateset from the filename extension, creates a new stateset of that type and assigns it to this node

Reimplemented from spin::ReferencedNode.

void spin::GroupNode::setTranslation	(	float	x,
		float	y,
		float	z
	)		`[virtual]`

The local translation offset for this node with respect to it's parent

Reimplemented in spin::AnimationNode, spin::CollisionShape, spin::ConstraintsNode, and spin::SoundNode.

void spin::GroupNode::setVelocity	(	float	dx,
		float	dy,
		float	dz
	)		`[virtual]`

A translational velocity (m/s). This is computed in the callbackUpdate() function.

void spin::GroupNode::setVelocityMode ( velocityMode mode ) [virtual]

Applying velocity to an object can either result in translational motion, where velocityMode is TRANSLATE (0). This is the default and applies and motion is relative to the local coordinate system of the node. When velocityMode is MOVE (1), then motion is relative to the current orientation of the node, analogous to the move() command.

void spin::GroupNode::stateDump ( ) [virtual]

We override stateDump so that we can additionally force a dumpGlobals() call whenever a dump is requested

Reimplemented from spin::ReferencedNode.

void spin::GroupNode::translate	(	float	x,
		float	y,
		float	z
	)		`[virtual]`

The translate command increments the node's current translation values (ie, it's position in the scene with respect to it's parent)

Reimplemented in spin::ConstraintsNode.

void spin::GroupNode::translateTo	(	float	x,
		float	y,
		float	z,
		float	time,
		const char *	motion = `"Linear"`
	)		`[virtual]`

Instead of instantaneous setTranslation, this method uses an ease motion to animate the node to the target position.

void spin::GroupNode::updateNodePath ( bool updateChildren = true ) [virtual]

IMPORTANT: subclasses of ReferencedNode are allowed to contain complicated subgraphs and can also change their attachmentNode so that children are attached anywhere in that subgraph. If that is the case, the updateNodePath() function MUST be overridden, and extra nodes must be manually pushed onto currentNodePath_.

Reimplemented from spin::ReferencedNode.

Reimplemented in spin::ModelNode, and spin::UserNode.

void spin::GroupNode::updateStateSet ( ) [virtual]

This method actually applies the stateset to the subgraph, replacing any existing stateset with this one. The setStateSet and setStateSetFromFile methods just set the stateset_ symbol, while updateStateSet does the actual work.

Override this method in subclasses in order to change how stateset should be applied. For example, to which node in the subgraph it should be attached, or whether it should be merged with the existing stateset (rather than merged).

By default it is applied to the mainTransform_.

Reimplemented from spin::ReferencedNode.

Reimplemented in spin::GeometryNode, spin::ModelNode, and spin::ShapeNode.

The documentation for this class was generated from the following files:

include/GroupNode.h
src/spin/GroupNode.cpp
